Product Name: XINSEN S-Series Stackable Residential Energy Storage System | 20kWh All-in-One
Model: [Suggest creating a model number, e.g., XN-S20-H1]
Product Overview: The XINSEN S-Series is a high-performance, all-in-one energy storage system designed for modern homes. It integrates a 20.48kWh stackable LiFePO4 battery, an intelligent BMS, and a powerful hybrid inverter to provide a seamless solution from PV generation and energy storage to home electricity use. As the manufacturer, XINSEN is committed to delivering a safe, efficient, and flexible energy management experience to households worldwide.
Key Features:
Flexible Capacity:
1. Rated Energy: 20.48kWh (composed of 4 stacked battery modules).
2. Modular Design: Supports easy addition or removal of battery modules for capacity scaling, protecting your long-term investment.
Advanced Safety Protection:
1. Cell Technology: Utilizes premium Grade-A Lithium Iron Phosphate (LFP) cells with a cycle life of >8,000 cycles.
2. Intelligent BMS: Provides comprehensive electrical protection against overcharge, over-discharge, overcurrent, short circuits, and temperature anomalies.
3. Physical Safeguards: Features multi-layer protection including cell temperature monitoring, an active fire suppression module, fireproof insulation, aerogel pads, and a pressure relief valve to build an ultimate safety barrier.
Seamless Integration:

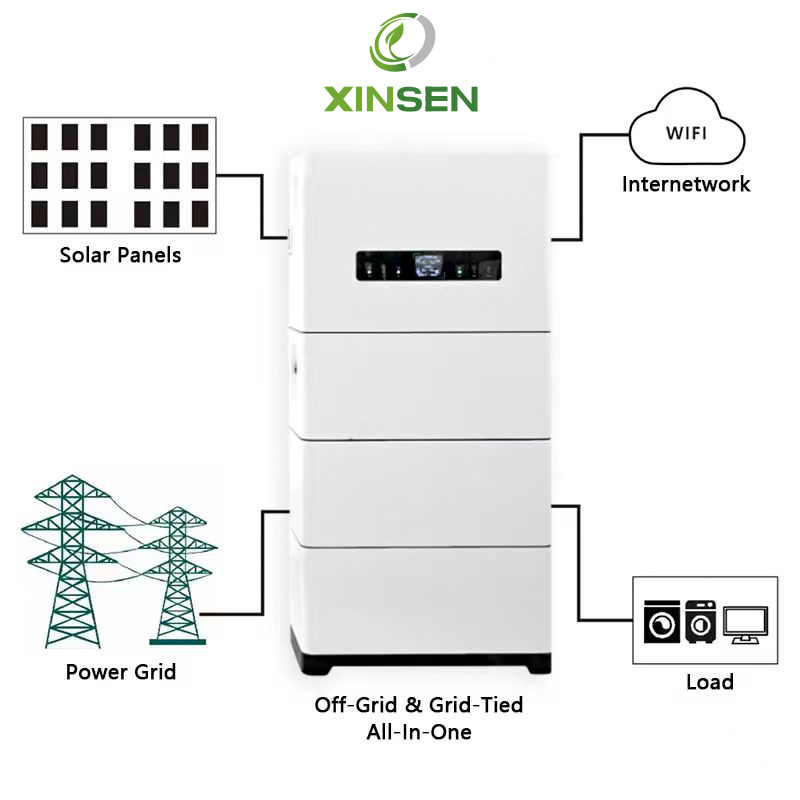

1. Operating Modes: Supports Grid-Tied, Off-Grid, and Hybrid configurations.
2. Application Scenarios: Enables various strategies such as PV self-consumption, peak shaving (time-of-use optimization), and backup power to ensure energy independence.
High-Efficiency Solar Charging:
1. Max. PV Input: 15,000W.
2. MPPT Range: 200 – 850VDC ultra-wide voltage range to adapt to various roof conditions and complexities.
3. Dual MPPT Trackers: Each with a 13A max input current to optimize energy harvest from different orientations or shading conditions.
Compact Design & Smart Connectivity:
1. Compact Dimensions: 700 * 235 * 2075mm (WDH), ensuring a small footprint and convenient installation.
2. IP Rating: IP54-rated enclosure provides effective protection against dust and water splashes for both indoor and outdoor installations.
3. Smart Connectivity: Built-in CAN and Wi-Fi communication for remote monitoring and management via a cloud platform and mobile app.
Technical Specifications:
| Battery Parameters | |
| Brand | XINSEN |
| Rated Energy | 20.48 kWh |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | > 8,000 Cycles |
| System Voltage | 409.6V |
| Inverter Parameters | |
| Max. PV Input Power | 15,000 W |
| MPPT Voltage Range | 200 – 850 VDC |
| Max. DC Input Voltage | 1,000 VDC |
| System Parameters | |
| Dimensions (WDH) | 700 * 235 * 2075 mm |
| IP Rating | IP54 |
| Communication | CAN, Wi-Fi |
| Application Modes | Grid-Tied / Off-Grid / Backup Power |
Choose XINSEN. Choose the reliability and commitment of the source manufacturer.
