| Model |
XDP50C/E |
XDP80C/E |
XDP100C/E |
| FOB Fuzhou port,China |
|
|
|
| Delivery （mm） |
（2“）50 |
（3”）80 |
（4“）100 |
| Suction（mm） |
（2“）50 |
（3”）80 |
（4“）100 |
| Max. Delivery Volume (m3/h) |
36 |
50 |
96 |
| Total Head (m) |
26 |
25 |
31 |
| Suction Head (m) |
8 |
8 |
8 |
| Diesel Engine Model |
170F/FE |
178F/FE |
186F/FE |
| Bore*stroke(mm*mm) |
70*55 |
78*62 |
86*70 |
| Displacement (cc) |
211 |
296 |
406 |
| Diesel Engine type |
Air-cooled, 4-stroke,Vertical,Single-cylinder, Direct injection combustion. |
| Governor System |
All-speed Type, Mechanical Governor |
| Max. Power Output (hp) |
4.0HP |
6.0HP |
9.0HP |
| Compression rate |
20:01 |
20:01 |
19:01 |
| Ignition Systems |
Explode Ingition |
| Lube oil system |
Pressure splash Type |
| Starting System |
Recoil or Electric |
| Lube oil capacity(L) |
0.75 |
1.1 |
1.65 |
| Fuel Tank Capacity（L） |
2.5 |
3.5 |
5.5 |
| Starting System |
Recoil or Electric |
Recoil or Electric |
Recoil or Electric |
| L*W*H(mm) |
490*430*510/490*475*510 |
580*470*550 |
660*510*625 |
| N.W/G.W (kg) |
38/40 |
48/50 |
67/69 |
| 20ft set |
236/220 |
192 |
105 |

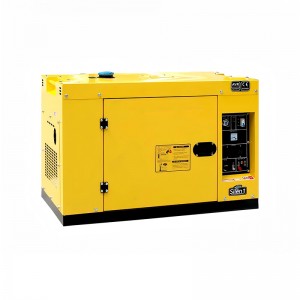

Previous: Small ultra-quiet diesel engine 7-10kw
