1100W/220V/50-60Hz

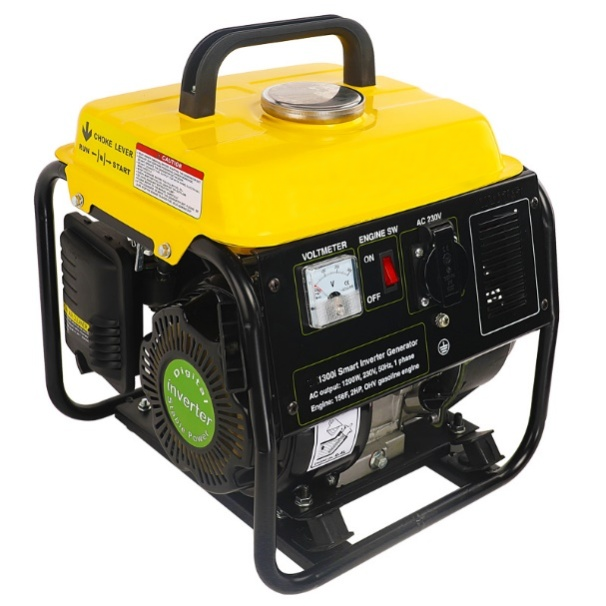

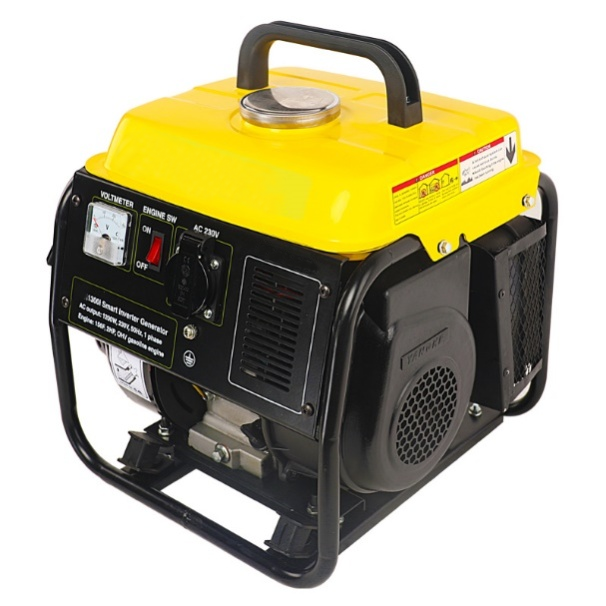

Product Overview: The BK1100i is a portable gasoline generator engineered for ultimate flexibility and reliability. Featuring a compact design, an efficient OHV engine, and advanced rare earth permanent magnet alternator technology, it stands as the ideal power companion for home backup, outdoor projects, recreational activities, and small commercial use. We offer competitive pricing and full OEM/ODM customization for our global B2B partners.

Key Features:

  • Stable & Robust Output: Delivers a rated power of 1100W and a maximum power of 1200W, effortlessly running lights, small power tools, charging devices, and various home appliances with a steady supply of electricity.
  • Ultra-Compact & Portable: Weighing only 16 kg (net) with compact dimensions of 340x340x360mm. The durable frame and integrated top handle make it easy to transport and store, perfect for applications where space is a premium.
  • Advanced Alternator Technology: Built with a 100% copper winding and a rare earth permanent magnet alternator. The pure copper ensures higher electrical conductivity, better heat dissipation, and a longer service life, while the permanent magnet design provides stable voltage with a simpler, more reliable structure.
  • Efficient & Reliable OHV Engine: Powered by a 2.8HP (156F) OHV engine, offering excellent fuel efficiency and strong performance. The 4.5-liter fuel tank supports a continuous runtime of up to 6 hours, meeting the demands of extended use.
  • User-Friendly & Safe Operation: Equipped with a simple recoil starter and an intuitive control panel featuring a voltmeter, AC outlet, and switch for straightforward operation. The rugged metal frame provides all-around protection for the unit.
  • Technical Data:
  • GENSET Model BK1100i
    Rated frequency (Hz) 50 Engine model 156F (2.8HP)
    Rated voltage (V) 230 Engine type 1 cylinder, OHV gasoline
    Rated current (A) 4.8 Displacement (cc) 98.5
    Rated speed (r/min) 2800-3600 Fuel capacity (L) 4.5
    Rated output (W) 1100 Cont. running time (Hrs.) 6
    Max. output (W) 1200 Starting system Recoil starter
    Phase number Single Packing size L×W×H (mm) 340×340×360
    Alternator type 100% copper winding,

    Rare earth permanent magnet alternator

    Net / Gross weight (kg) 16 / 18
        QTY 20’GP / 40’HQ (Sets) 606 / 1428
  • 图片20 图片21 图片22 图片23 图片24
