| Model | AB25 | AB50/AB50S | AB80/CP80M | AB50S |
|---|---|---|---|---|
| Inlet inch (mm) | 1″ (25mm) | 2″ (50mm) | 3″ (80mm) | 2″ (50mm) |
| Outlet inch (mm) | 1″ (25mm) | 2″ (50mm) | 3″ (80mm) | 2″ (50mm) |
| Max.head (m) | 23 | 35 | 28 | 30 |
| Suction lift (m) | 6 | 8 | 8 | 8 |
| Max.flow (L/min) | 120 | 550 | 1000 | 510 |
| Pump body | PA66 plastic | PA66 plastic | PA66 plastic | 304 stainless steel |
| Impeller | PA66 plastic | PA66 plastic | PA66 plastic | 304 stainless steel |
| Mechanical seal | Carbon-Ceramic | Carbon-Ceramic | Carbon-Ceramic | Silicon Carbide |
| Driving power (kw) | 1.2 | 4.1 | 4.8 | 2.8 |
| Working speed (rpm) | 4500 | 3600 | 3600 | 3600 |
| Length (mm) | 215 | 330/400 | 425/460 | 315 |
| Width (mm) | 215 | 280/290 | 295/290 | 205 |
| Height (mm) | 185 | 222/380 | 297/412 | 202 |
| Weight (kg) | 1.75 | 3.5/6.75 | 4.7/8 | 9.3 |
Engine-driven Pumps
CHEMICAL & SEA WATER PUMP
Text Content:
- Pump body, impeller, and diffuser made from strengthened plastic, suitable for various chemicals.
- Adopts EPDM rubber (NBR or VITON also available) and high-quality EPDM+ceramic mechanical seal for anti-chemical reaction.
- Optional pulley with support for various applications.

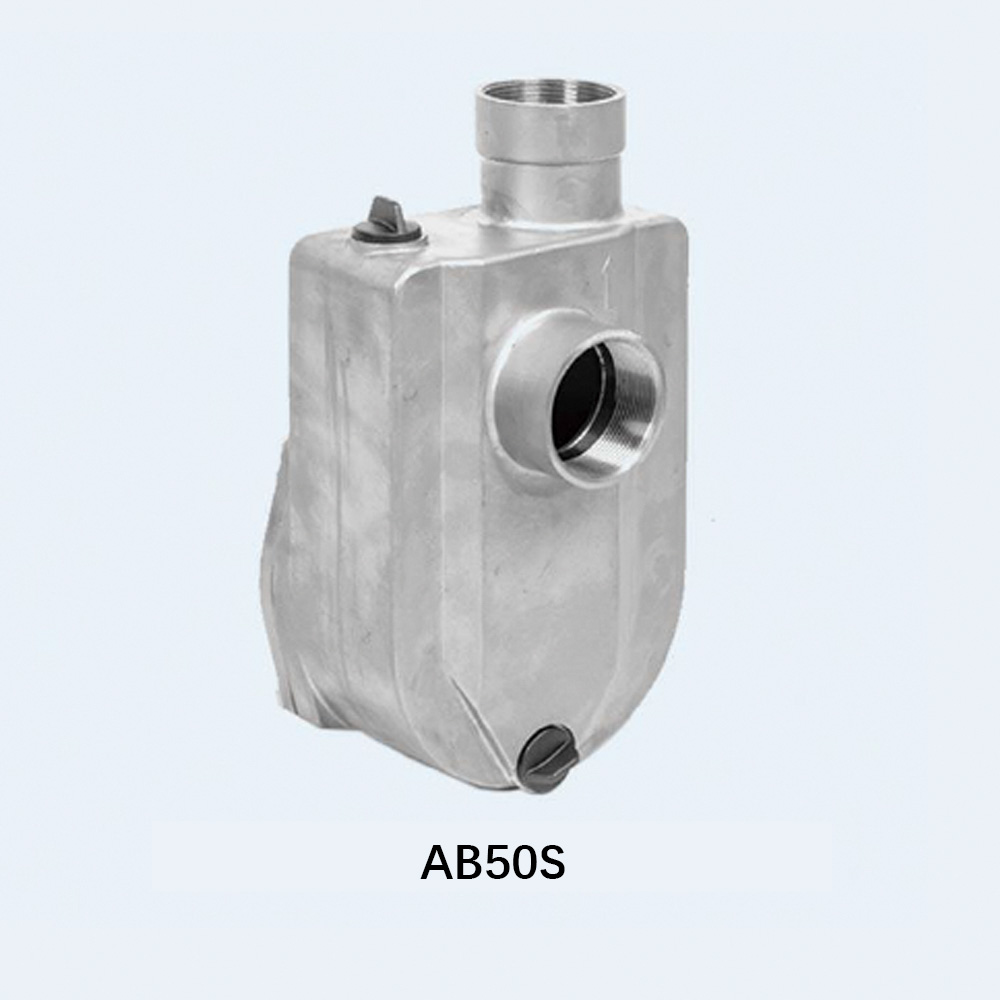

- AB50S is made from stainless steel and features a high-quality silicon carbon mechanical seal.
