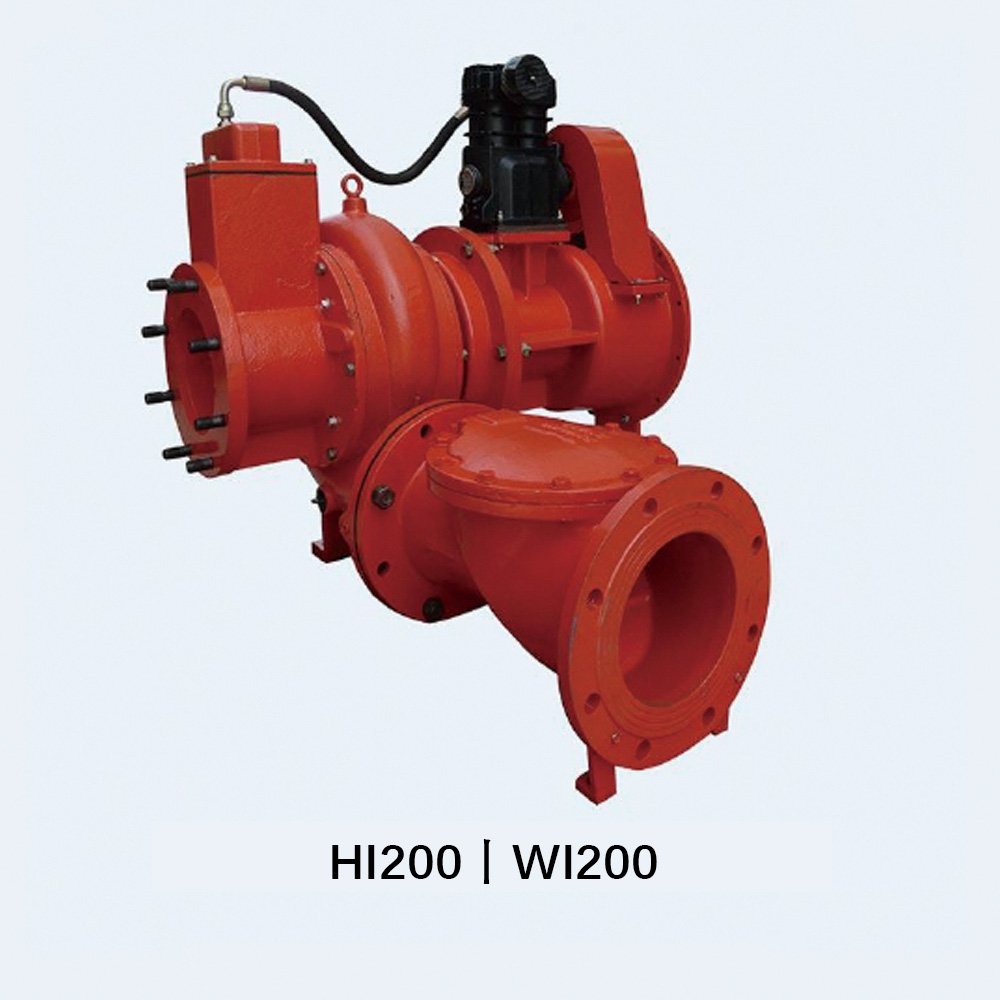

HI80/HI80M/HI801/HI200/WI200

HIGH PRESSURE PUMP

MOBILE PUMP STATION

Sturdy and durable cast iron material.
Pump integrated with air compressor, external jet device, mechanical seal lubricated separately and check valve, automatic start without water injection, self-priming time significantly reduced.
In order to reduce power loss, air compressor assembled with cluth, can stop after the pump operated.
Adopt high quality silicon carbide mechanical seal.
WP200 impeller made by cast steel, special impeller design brings high efficiency and high head with large flow rate.
TP200 impeller made by spheroidal graphite cast iron, 10 times better wear-resisting performance than standard cast iron.
TP200 max solids handling 70mm.
Can also be powered by electric motor.

SPECIFICATIONS

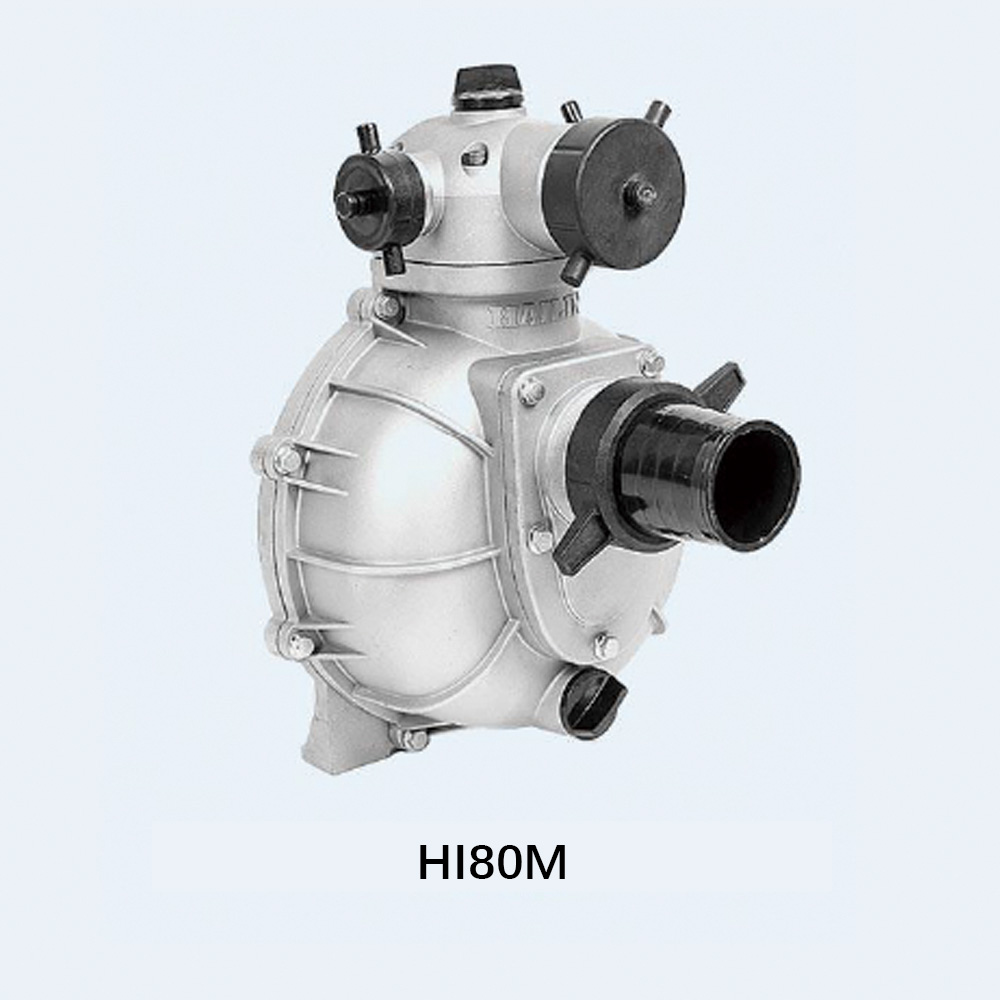

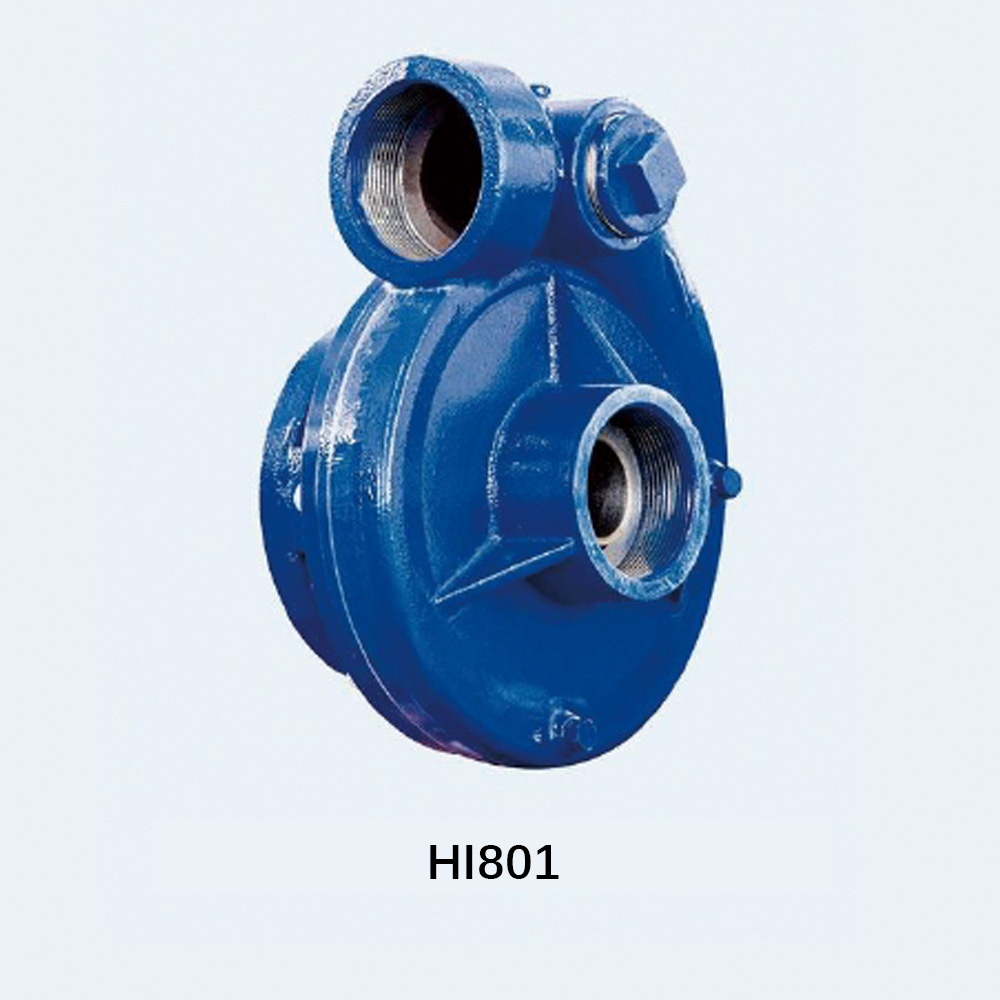

Model	HI80	HI80M	HI801	WI200	TI200
Inlet inch (mm)	3″ (80mm)	3″ (80mm)	3″ (80mm)	8″ (200mm)	8″ (200mm)
Outlet inch (mm)	3″ (80mm)	1×2.5″(65mm),2×1.5″(40mm)	3″ (80mm)	8″ (200mm)	8″ (200mm)
Max.head (m)	65	65	65	60	51
Suction lift (m)	7	7	5	8	8
Max.flow	700(L/min)	700(L/min)	750 (L/min)	590 (m³/h)	625 (m³/h)
Pump body	Aluminum alloy	Aluminum alloy	Cast iron	Cast iron	Cast iron
Impeller	Copper	Copper	Cast iron	Cast steel	Spheroidal graphite cast iron
Mechanical seal	Carbon-Ceramic	Carbon-Ceramic	Carbon-Ceramic	Silicon Carbide	Silicon Carbide
Driving power (kw)	9.75	9.75	9.75	92	80
Working speed (rpm)	3600	3600	3600	2200	2200
Length (mm)	455	455	350	1010	1010
Width (mm)	310	310	280	1060	1060
Height (mm)	267	267	212	930	930
Weight (kg)	12.5	12.5	22	396	392
