| MODEL |
ㅤ |
KG7000DE |
KG8000DE |
KG9000DE |
KG10000DE |
| Generator |
Frequency(HZ) |
50 |
50 |
50 |
50 |
| Voltage(V) |
220 |
220 |
220 |
220 |
| Max. Power(KW) |
7.5 |
8.5 |
10 |
11 |
| Rated Power(KW) |
7 |
8 |
9 |
10 |
| DC Output |
12V/8.3A |
12V/8.3A |
12V/8.3A |
12V/8.3A |
| Power Factor cos |
1 |
1 |
1 |
1 |
| Engine |
Model |
KG195F |
KG198F |
1102F |
1105F |
| Max. Output(HP) |
13/3600rpm |
15/3600rpm |
18/3600rpm |
20/3600rpm |
| Displacement(cc) |
531 |
633 |
718 |
762 |
| Starting System |
Electric |
Electric |
Electric |
Electric |
| Type |
single cylinder vertical,4-stroke, air-cooled |
| Fuel Tank (L) |
12.5 |
12.5 |
12.5 |
12.5 |
| Oil Capacity (L) |
1.65 |
1.65 |
2 |
2 |
| Package |
Dimension(LXWXH)mm |
950*560*780 |
1130*640*860 |
1130*640*860 |
1130*640*860 |
| G.W (kg) |
164 |
200 |
205 |
220 |
| 20FT/40HQ(SETS) |
72/144 |
36/108 |
36/108 |
36/108 |

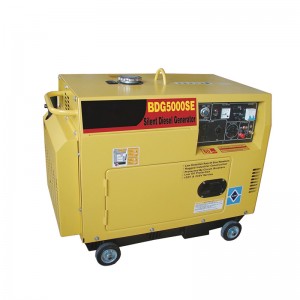

Previous: Small silent diesel engine 3-6kw
