| Model |

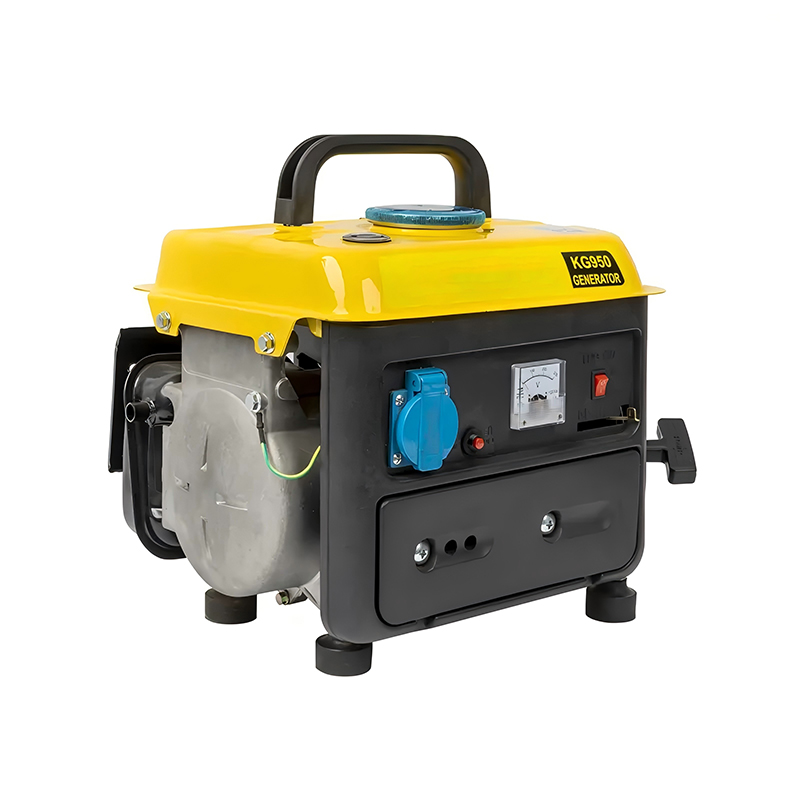

XG950 |
| FOB Fuzhou port,China |
|
| Gen set Type |
Brushless,self-exciting,2-poles,single phase |
| Voltage regulate |
Capacitor |
| Frequency (Hz) |
50/60 |
| AC Output Voltage( V) |
110~240 |
| Rated Power (kva) |
0.65 |
| Max.Power (kva) |
0.75 |
| Engine Model |
1E45 |
| Gasoline engine type |
OHV 2-stroke, air cooled, Single-cylinder |
| Bore*stroke(mm*mm) |
45*40 |
| Max. Power Output (hp) |
2.0HP |
| Output（KW/rpm) |
1.2/3000 1.5/3600 |
| Ignition Systems |
C.D.I |
| Lube oil system |
Self lubricate |
| Fuel type |
Gasoline:Oil= 50:1 |
| Starting System |
Recoil |
| Displacement (cc) |
63 |
| Fuel Consumption(g/kw/h) |
540 |
| Fuel Tank Capacity(L) |
4 |
| Noise Level at 7m (dB) |
60 |
| Socket |
Any socket as requested |
| DC Output 12V/8.3A |
For optional |
| Voltage Meter |
For optional |
| L*W*H(mm) |
380*330*330 |
| N./G.W(kg) |
20/21 |
| 20ft(set) |
750 |
| 40ft(set) |
1450 |
